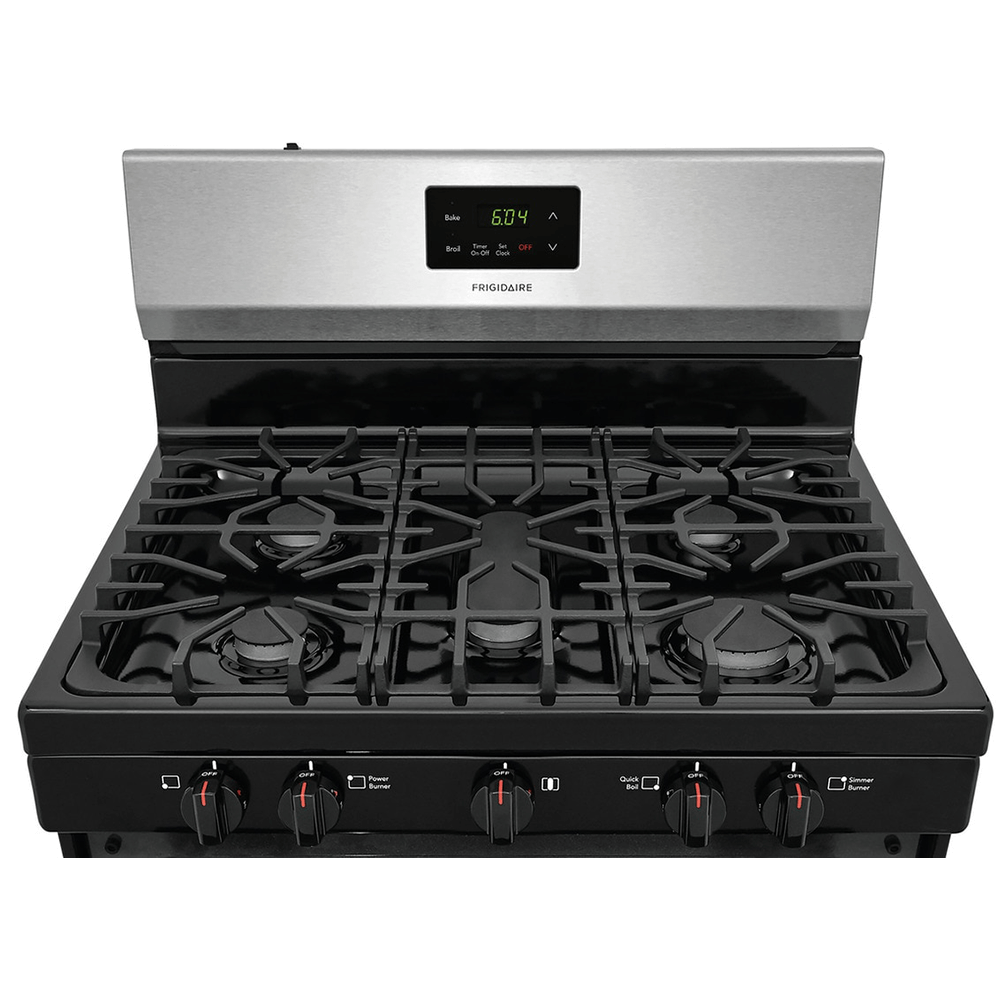

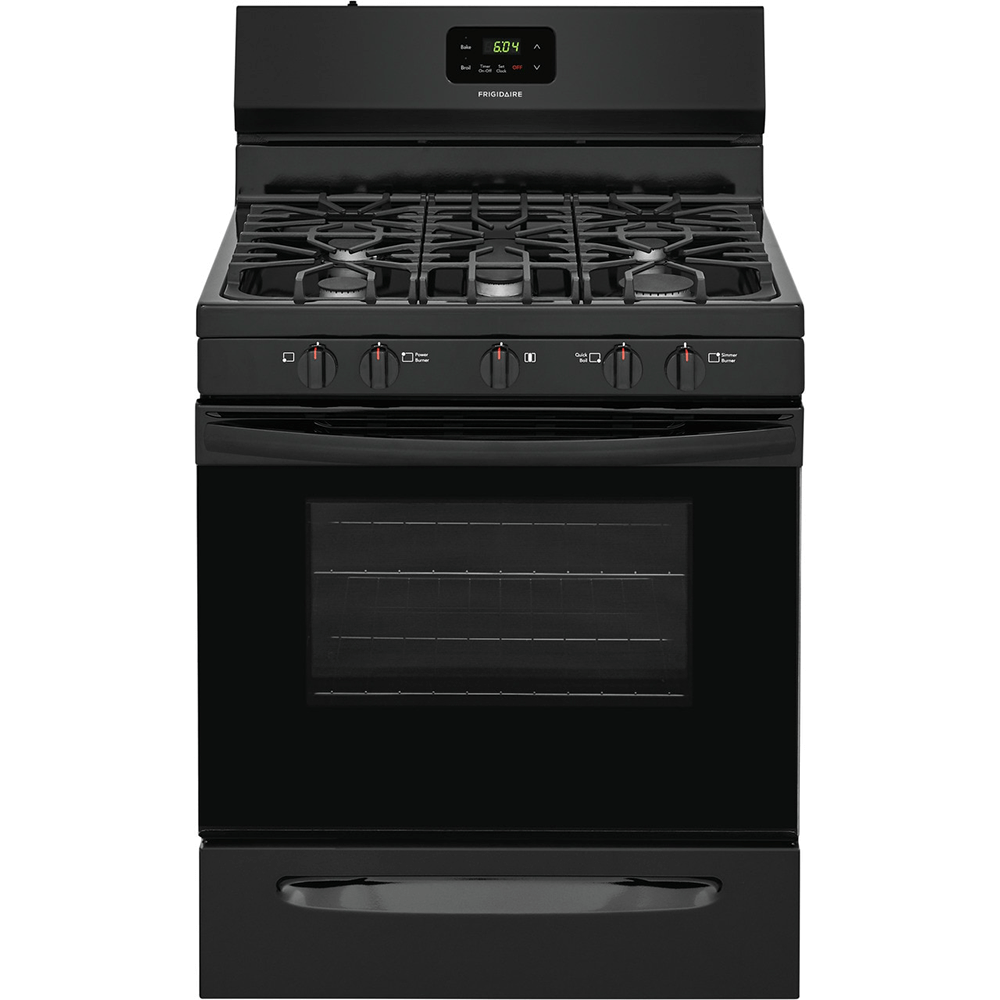

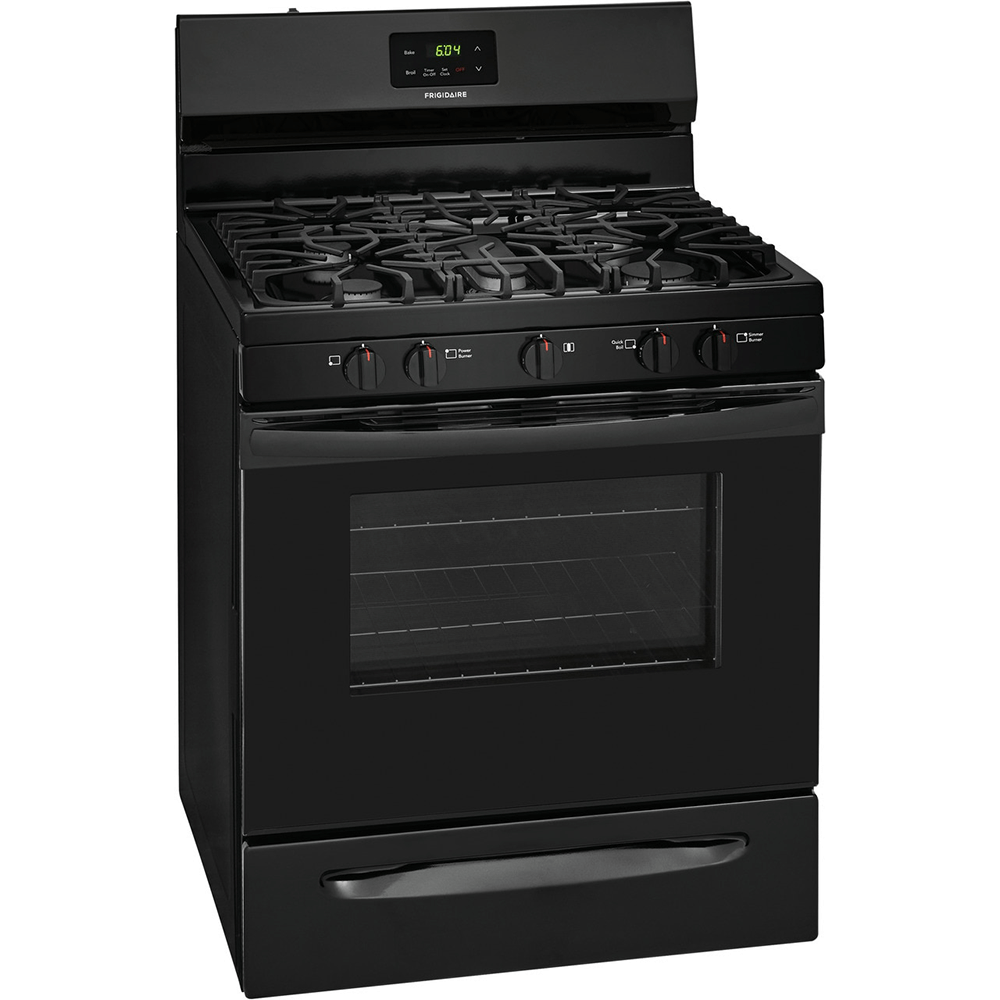

The Frigidaire 30″ Gas Range gives you more cooking flexibility with a 5.0 cu. ft. capacity oven and storage drawer. The cooktop features 5 Sealed Gas Burners, including a 16,000 BTU Quick Boil Burner, 10,000 BTU Oval Burner, and a Low-Simmer Burner, so you can have precise temperature control with high and low heat. Stainless Steel exterior is durable and creates a premium look in your kitchen.

Features:
Get meals to the table faster with our 16,000 BTU burner.

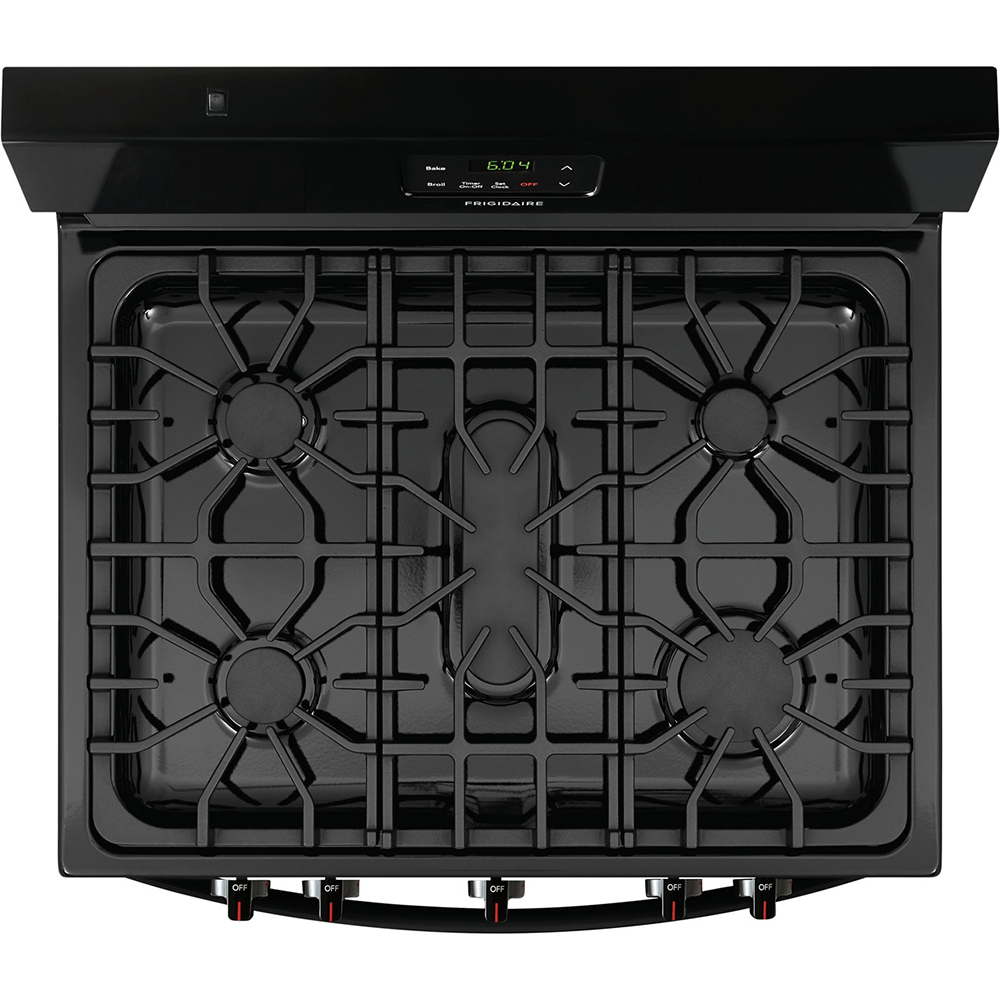

Move heavy pots & pans without lifting with continuous corner-to-corner grates.
Evenly heat and cook on griddles with the 10,000 BTU oval burner.
Enjoy easier cleanup and a burner that stays looking great.
With the Store-More™ Storage Drawer, you will have extra space to store your cookware.
Perfect for cooking delicate foods and sauces.
Designed to deliver even baking results, every time.
Times up to 12 hours.

Cooking Controls
Bake : Yes
Broil : Yes
Clear Off : Yes
Kitchen Timer : Yes
Lockout : No
Oven Light : Yes
Preheat : Yes
Probe : No
Self Clean : No
Temperature Display : Yes
Timed Bake : No
Warmer Drawer : No

Oven
Bake Element : 18000 BTU
Bake System : Yes
Broil Element : 1400 Watts
Broil System : Yes
Number of Rack Positions : 6
Rack Position Type : Nickel Ladder
Rack Type 1 : Flat
Rack Type 1 Quantity : 2
Window Type : Extra Large Visual

Drawer
Drawer Type : Storage

Controls
Control Lock : No
Sabbath Mode : No

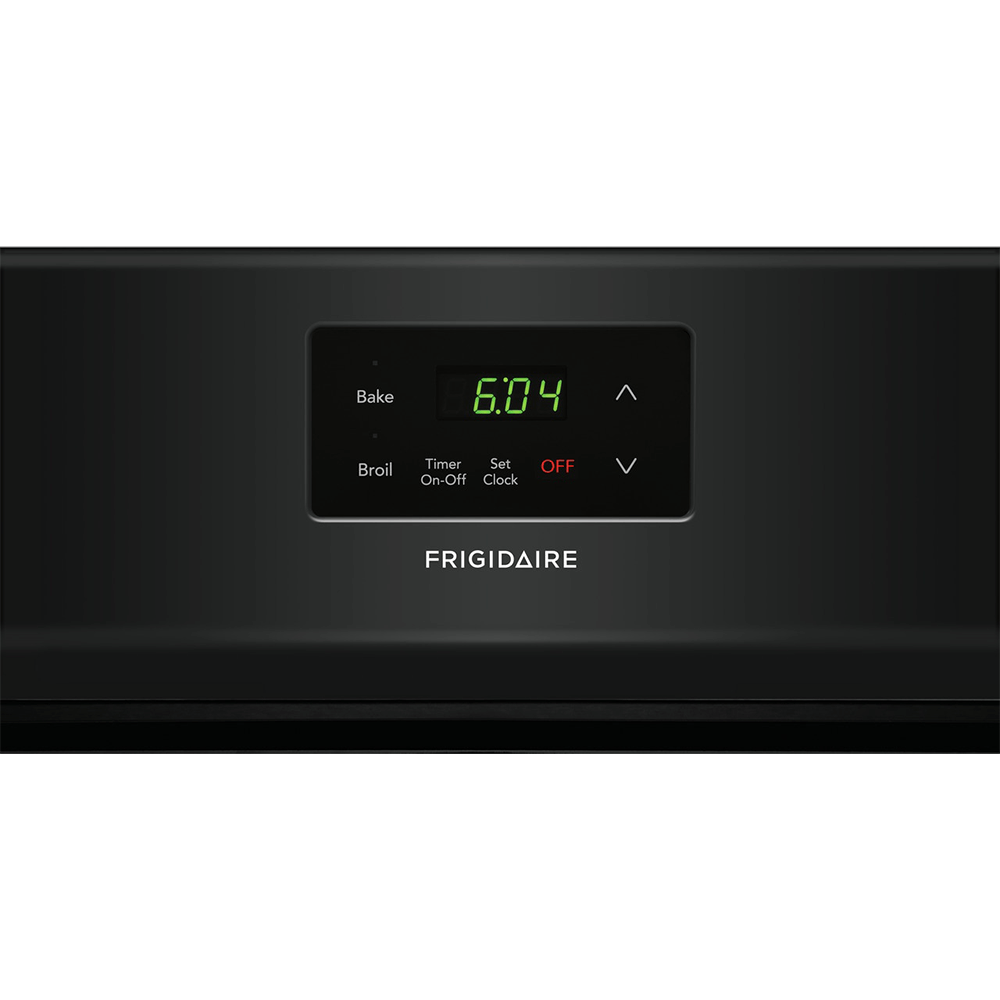

Display
Control Location : Rear
Display Type : Membrane

Exterior
Cooktop Finish : Color Coordinated
Drawer Finish : Color Coordinated
Knob Material : Plastic

Dimensions and Volume
Depth With Door 90° Open : 46 9/16″
Oven Interior Height : 18 5/8″
Oven Interior Width : 24 3/8″
Oven Interior Depth : 19 1/8″
Oven Capacity : 5 Cu. Ft.

Electrical Specifications
Minimum Circuit Required : 12 Amps
Voltage Rating : 120 V

Installation
Adjustable Leveling Legs : Yes
Power Supply Connection Location : Bottom Center

General Specifications
Product Weight : 171 lbs
Prop 65 Label : Yes
Warranty – Labor : 1 Year
Warranty – Parts : 1 Year
AB-1200 : Information available at frigidaire.com/en/ab1200

Certifications and Approvals
ADA Compliant : No
CSA Listed :

Dimensions
Width: 29 7/8 in
Height: 46 9/16 in
Depth: 25 3/4 in
